Key Warning Chime

By Mike Dailey

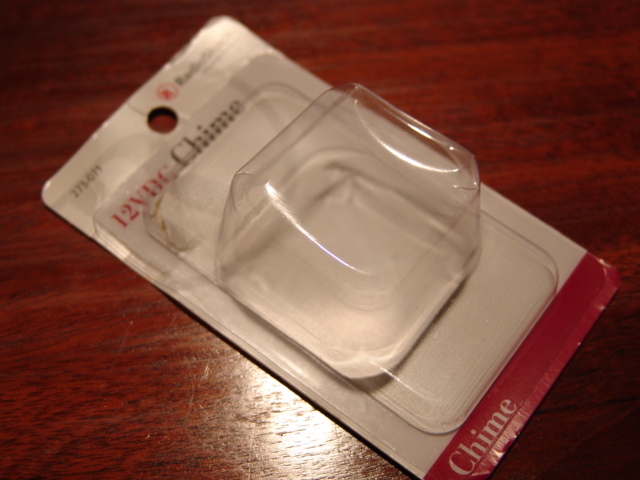

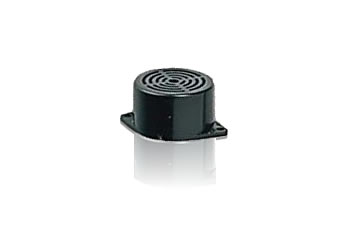

My key warning buzzer as been working intermittently lately and I decided rather than replacing it with another annoying buzzer unit Id replace it with a chime unit.  Radio Shack sells a small chime unit that fits into the same space as the buzzer.  The part number is 273-071 and should be in stock at your local store.

Key Chime 2.jpg (3993 bytes) Key Chime 3.JPG (134685 bytes) Key Chime 4.JPG (130937 bytes)

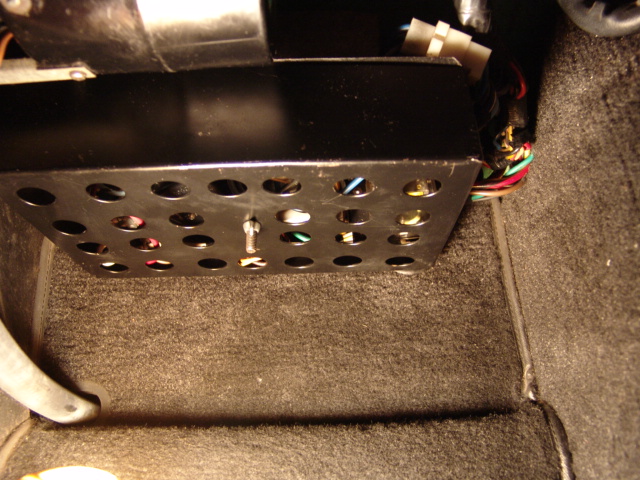

On 1971 cars like mine the key warning buzzer is located in the relay group that is in the passenger foot well behind the glove box.  The cover on the relay group is held on with a wing nut.  Be sure to disconnect the battery before removing the cover.

Key Chime 5.JPG (158756 bytes)

After the cover is removed the buzzer unit can be removed.  It is held in place with a nut and has two wires connected to it.

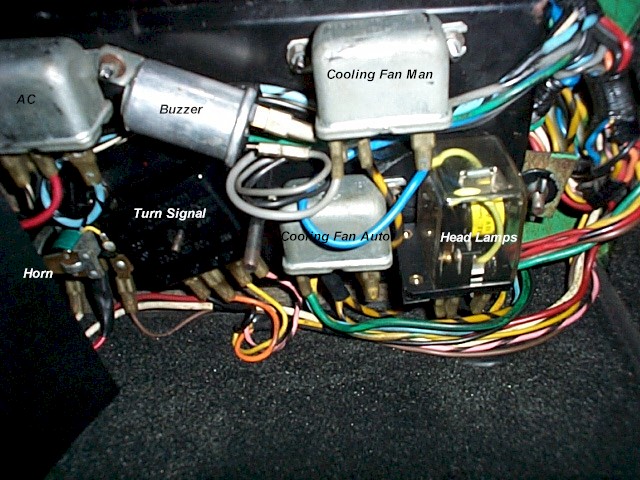

Pantera Relays 1971 main.jpg (115991 bytes) Key Chime 6.JPG (146811 bytes)

The mounting tab on the chime unit is too small to use with the original mounting stud so I super glued a strip of ABS plastic on the bottom of the chime and drilled a hole in the end of the strip to form a new mounting tab.

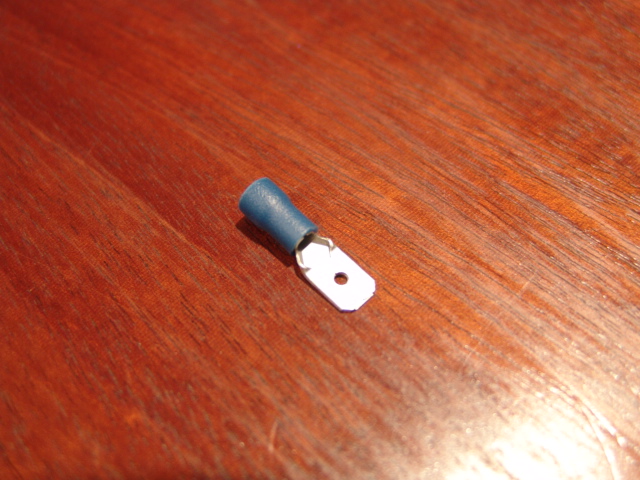

The chime unit has three wires.  I used Radio Shack spade terminal #64-3038 and crimp the black and blue wires together in one spade connector.  The red wire was crimped into a second spade connector.  The spade connectors insert into the original wires that were connected to the buzzer unit. You may need to close the original connectors a little with a pair of pliers so the connectors slide together snugly.   The black/blue chime connector goes to the green connector and the red chime connector goes to the gray connector.

Key Chime 7.JPG (153957 bytes)

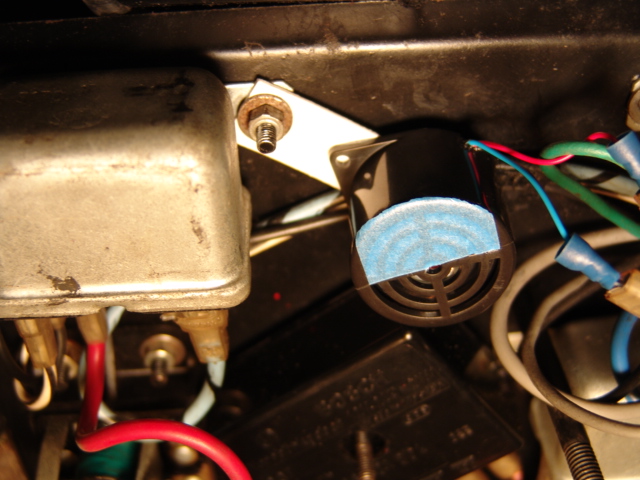

Before mounting the chime I covered one half of the chime speaker with tape to reduce the sound level.

Key Chime 8.JPG (160337 bytes)

After the chime was mounted I replaced the relay group cover and connected the battery.  Play short chime video sample.  The chime has a pleasant sound that I prefer over the buzzer.

Update

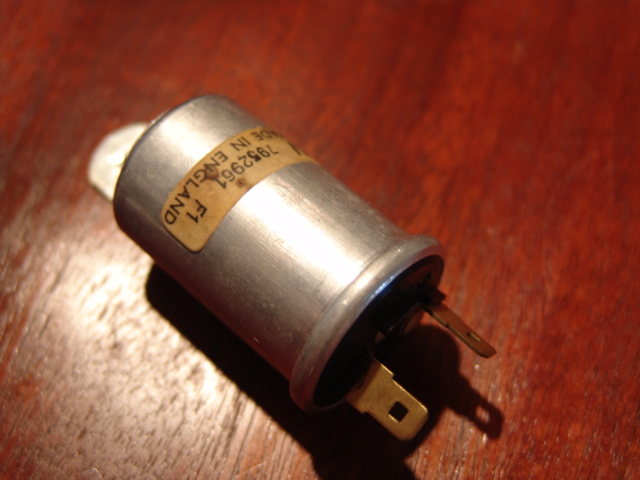

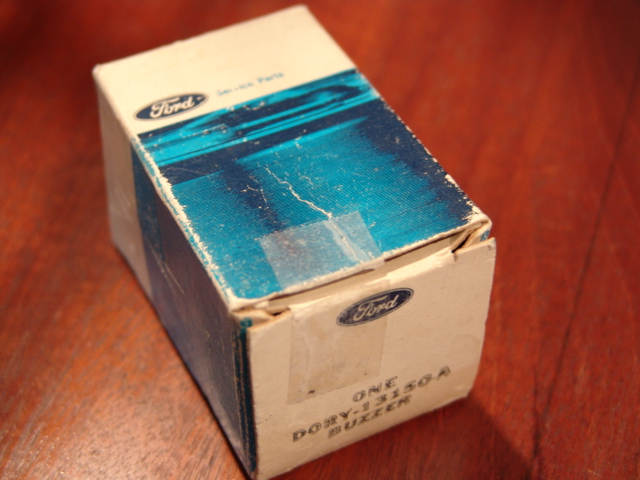

Later on I found a NOS buzzer on ebay for less than $30 with shipping.  I removed the chime and installed the buzzer.  These are pretty costly from the Pantera vendors.

Buzzer 1.JPG (151676 bytes) Buzzer 2.JPG (162336 bytes)
