Holley 600 Carburetor Fuel Leak Problem

By Mike Dailey

(Click images to view)

I installed a new Holley 600 carburetor on my Pantera about two years ago and recently I noticed that a very small amount of fuel was weeping out of the accelerator pump housing that is located under the front float bowl.  In my case, I noticed the leak while it was in the weeping stage not the full leaking stage that could cause a potential fire problem when the fuel drips on the hot intake manifold.  I tried tightening the housing screws but the leak was in the pump diaphragm.

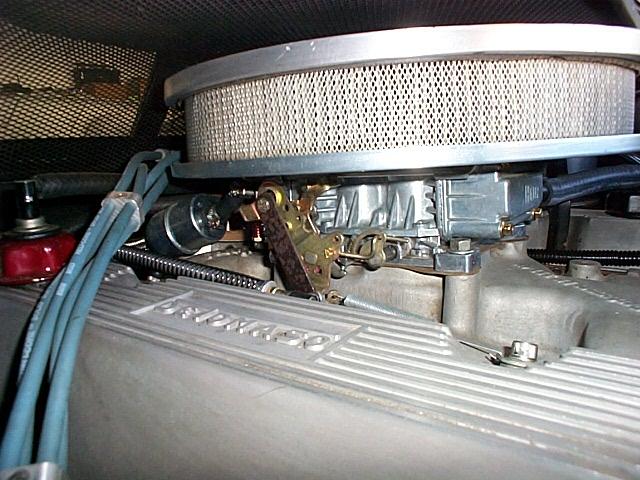

Holley Fuel 1.jpg (68572 bytes)

The fuel collects directly bellow the front corner of the carburetor in the recess in the intake manifold.  The fuel residue on the intake looks like oil because of the small amount of fuel that weeps out of the carburetor.

Apparently the diaphragms used by Holley for the accelerator pump can start leaking when they are not very old.  I was able to find a new Holley diaphragm at Advance Auto for about $3 and it was an easy repair.

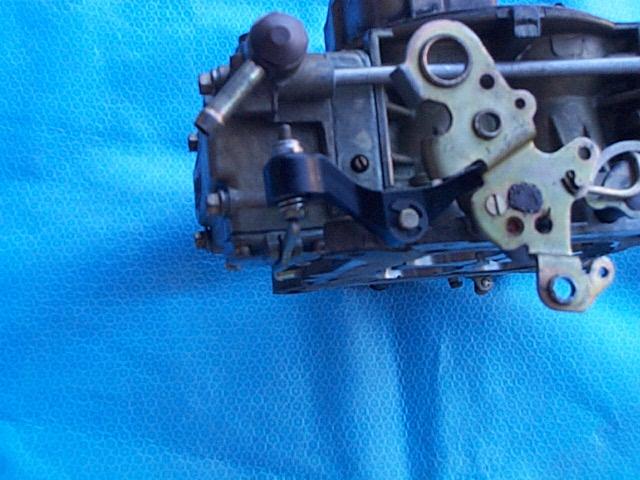

Holley Fuel 2.jpg (52422 bytes)

The side view of the pump housing

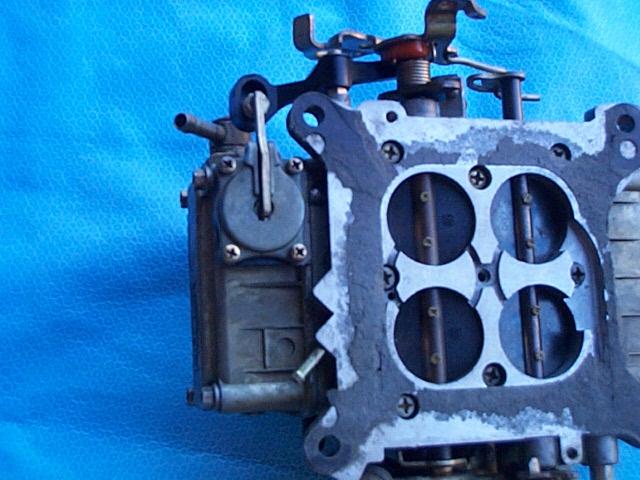

Holley Fuel 3.jpg (54073 bytes)

The bottom view of the pump housing

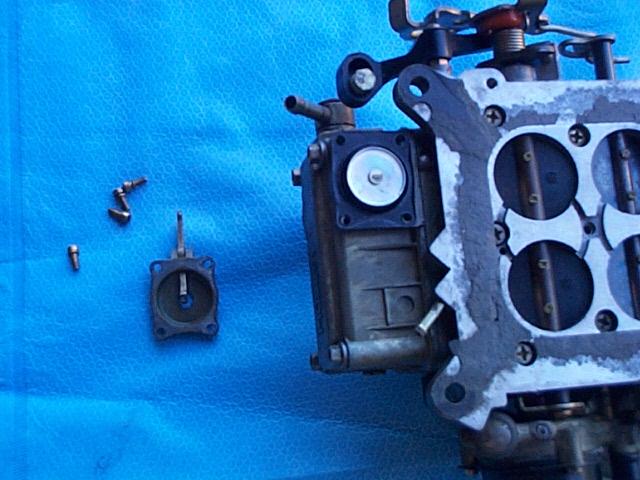

Holley Fuel 4.jpg (52176 bytes)

The pump housing cover removed with the diaphragm visible

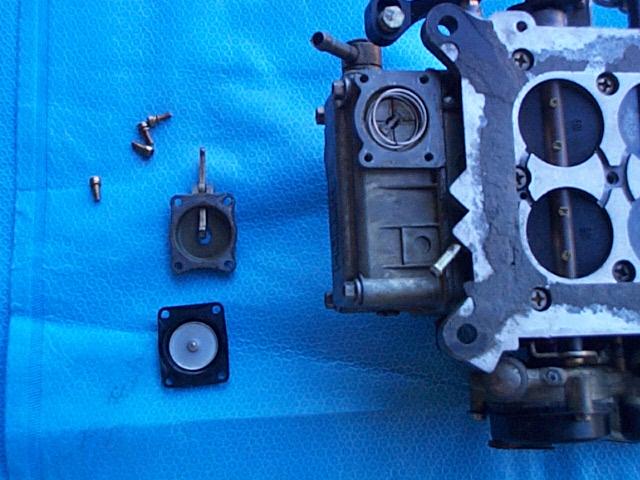

Holley Fuel 5.jpg (52963 bytes)

View of the diaphragm removed with the spring still in the housing

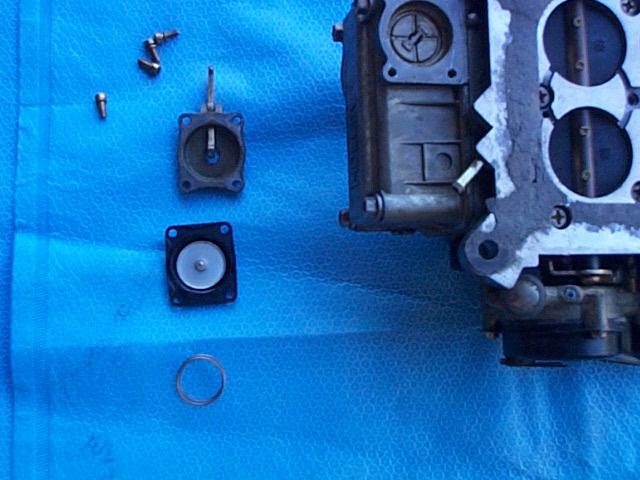

Holley Fuel 6.jpg (49092 bytes)

View of the diaphragm and spring removed

If you have a Holley 600 carb on your car you might want to check diaphragm for leaks as part of your regular ongoing maintenance checks.
